Modelica Language Ontology
Release 2023-06-23
- Latest version:
- https://w3id.org/moont/
- Previous version:
- v0.9.1
- Revision:
- v0.9.2
- Issued on:
- 2021-06-09
- Authors:
- Elisabeth Eckstädt
- https://orcid.org/0000-0003-4396-5307
- https://www.linkedin.com/in/elisabeth-eckst%C3%A4dt-18689115a/
- Download serialization:
-
- License:
- Cite as:
- Elisabeth Eckstädt. Modelica Language Ontology (MoOnt). Revision: v0.9.2.
- Compatible with:
- 0.9.1
Abstract
This ontology defines the terms and relations in the Modelica Language.Introduction back to ToC
This ontology defines the terms and relations in the Modelica Language.It was created in 2021 based on "Wolfram System Modeler" (wsm) and is developed in this github repo: https://github.com/ElisEck/MO-x-IFC/
This ontology is intended to provide information contained in Modelica simulation models for other interested stakeholders besides the simulation engineer. A usecase comprising bidirectional translation between IFC and Modelica is described in this paper: doi.org/10.24406/publica-fhg-412499
Namespace declarations
| [Ontology NS Prefix] | <https://w3id.org/moont/> |
| owl | <http://www.w3.org/2002/07/owl> |
| rdf | <http://www.w3.org/1999/02/22-rdf-syntax-ns> |
| xml | <http://www.w3.org/XML/1998/namespace> |
| xsd | <http://www.w3.org/2001/XMLSchema> |
| dcterms | <http://purl.org/dc/terms> |
| rdfs | <http://www.w3.org/2000/01/rdf-schema> |
Modelica Language Ontology: Overview back to ToC

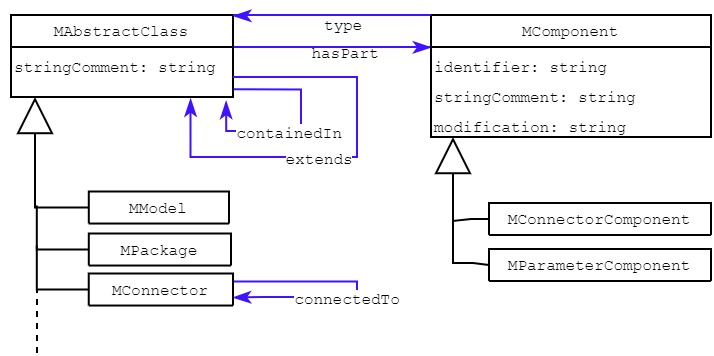

This ontology has the following classes and properties.Classes
- m connector component
- m parameter component
- MAbstractClass
- MAlgorithm
- MBlock
- MBooleanType
- MClass
- MComponent
- MConnection
- MConnector
- MDerives
- MEnumerationBaseType
- MEnumerationLiteral
- MEnumerationType
- MEquation
- MExtends
- MExternal
- MFunction
- MIntegerType
- MModel
- MPackage
- MRealType
- MRecord
- MStringType
- MType
- MTypeComponent
Object Properties
- algorithm
- base class
- component modification
- component redeclaration
- component value change
- connected to
- connection
- contained in
- derives
- equation
- extends
- external
- fromPort
- hasPart
- initialAlgorithm
- items
- statement
- toPort
- type
Data Properties
- annotation
- arraySubscripts
- causality
- condition
- description
- dynamicReference
- fromPortArraySubscripts
- functionCall
- identifier
- initial
- isEncapsulated
- isExpandable
- isFinal
- isFlow
- isPartial
- isProtected
- language
- modification
- string comment
- toPortArraySubscripts
- variability
Named Individuals
Modelica Language Ontology: Description back to ToC
The most important parts that have remained unchanged between the predecessor wsm and the MoOnt are shown in the simplified UML diagram below.There is an abstract superclass representing all Modelica classes, where “model” and “package” are the most frequently used ones. Another important entity is the so called component, with its special cases “ConnectorComponent” and “ParameterComponent”. This special cases have been added as they were not present in wsm. As the affiliation to a certain package or model is also very meaningful for a Modelica classes content, a containedIn-Relation has been added to the ontology with MAbstractClass as domain and range.
Cross-reference for Modelica Language Ontology classes, object properties and data properties back to ToC
This section provides details for each class and property defined by Modelica Language Ontology.Classes
- m connector component
- m parameter component
- MAbstractClass
- MAlgorithm
- MBlock
- MBooleanType
- MClass
- MComponent
- MConnection
- MConnector
- MDerives
- MEnumerationBaseType
- MEnumerationLiteral
- MEnumerationType
- MEquation
- MExtends
- MExternal
- MFunction
- MIntegerType
- MModel
- MPackage
- MRealType
- MRecord
- MStringType
- MType
- MTypeComponent
m connector componentc back to ToC or Class ToC
IRI: https://w3id.org/moont/MConnectorComponent
- has super-classes
- MComponent c
- is in domain of
- connected to op
- is in range of
- connected to op, fromPort op, toPort op
m parameter componentc back to ToC or Class ToC
IRI: https://w3id.org/moont/MParameterComponent
- has super-classes
- MComponent c
MAbstractClassc back to ToC or Class ToC
IRI: https://w3id.org/moont/MAbstractClass
- has super-classes
- modelica class c
- has sub-classes
- MBlock c, MClass c, MConnector c, MFunction c, MModel c, MPackage c, MRecord c, MType c
- is in domain of
- algorithm op, contained in op, derives op, equation op, extends op, hasPart op, initialAlgorithm op, isEncapsulated dp, isPartial dp
- is in range of
- base class op, contained in op, type op
MAlgorithmc back to ToC or Class ToC
IRI: https://w3id.org/moont/MAlgorithm
- has super-classes
- modelica class c
- is in domain of
- statement op
- is in range of
- algorithm op, initialAlgorithm op, statement op
MBlockc back to ToC or Class ToC
IRI: https://w3id.org/moont/MBlock
- has super-classes
- MAbstractClass c
MBooleanTypec back to ToC or Class ToC
IRI: https://w3id.org/moont/MBooleanType
- has super-classes
- MType c
- has members
- boolean type ni
MClassc back to ToC or Class ToC
IRI: https://w3id.org/moont/MClass
- has super-classes
- MAbstractClass c
MComponentc back to ToC or Class ToC
IRI: https://w3id.org/moont/MComponent
- has super-classes
- modelica class c
- has sub-classes
- MTypeComponent c, m connector component c, m parameter component c
- is in domain of
- component modification op, condition dp, dynamicReference dp, isFinal dp, isProtected dp, type op, variability dp
- is in range of
- hasPart op
MConnectionc back to ToC or Class ToC
IRI: https://w3id.org/moont/MConnection
- has super-classes
- modelica class c
- is in domain of
- fromPort op, fromPortArraySubscripts dp, toPort op, toPortArraySubscripts dp
- is in range of
- connection op
MConnectorc back to ToC or Class ToC
IRI: https://w3id.org/moont/MConnector
- has super-classes
- MAbstractClass c
- is in domain of
- isExpandable dp
MDerivesc back to ToC or Class ToC
IRI: https://w3id.org/moont/MDerives
- has super-classes
- modelica class c
- is in range of
- derives op
MEnumerationBaseTypec back to ToC or Class ToC
IRI: https://w3id.org/moont/MEnumerationBaseType
- has super-classes
- MType c
MEnumerationLiteralc back to ToC or Class ToC
IRI: https://w3id.org/moont/MEnumerationLiteral
- has super-classes
- modelica class c
- is in range of
- items op
MEquationc back to ToC or Class ToC
IRI: https://w3id.org/moont/MEquation
- has super-classes
- modelica class c
- is in domain of
- initial dp
MExtendsc back to ToC or Class ToC
IRI: https://w3id.org/moont/MExtends
- has super-classes
- modelica class c
- is in range of
- extends op
MExternalc back to ToC or Class ToC
IRI: https://w3id.org/moont/MExternal
- has super-classes
- modelica class c
- is in domain of
- functionCall dp, language dp
- is in range of
- external op
MFunctionc back to ToC or Class ToC
IRI: https://w3id.org/moont/MFunction
- has super-classes
- MAbstractClass c
- is in domain of
- external op
MIntegerTypec back to ToC or Class ToC
IRI: https://w3id.org/moont/MIntegerType
- has super-classes
- MType c
- has members
- integer type ni
MModelc back to ToC or Class ToC
IRI: https://w3id.org/moont/MModel
- has super-classes
- MAbstractClass c
MPackagec back to ToC or Class ToC
IRI: https://w3id.org/moont/MPackage
- has super-classes
- MAbstractClass c
MRecordc back to ToC or Class ToC
IRI: https://w3id.org/moont/MRecord
- has super-classes
- MAbstractClass c
MStringTypec back to ToC or Class ToC
IRI: https://w3id.org/moont/MStringType
- has super-classes
- MType c
MTypec back to ToC or Class ToC
IRI: https://w3id.org/moont/MType
- has super-classes
- MAbstractClass c
- has sub-classes
- MBooleanType c, MEnumerationBaseType c, MEnumerationType c, MIntegerType c, MRealType c, MStringType c
MTypeComponentc back to ToC or Class ToC
IRI: https://w3id.org/moont/MTypeComponent
- has super-classes
- MComponent c
- is in domain of
- isFlow dp
Object Properties
- algorithm
- base class
- component modification
- component redeclaration
- component value change
- connected to
- connection
- contained in
- derives
- equation
- extends
- external
- fromPort
- hasPart
- initialAlgorithm
- items
- statement
- toPort
- type
algorithmop back to ToC or Object Property ToC
IRI: https://w3id.org/moont/algorithm
- has super-properties
- modelica object property op
- has domain
- MAbstractClass c
- has range
- MAlgorithm c
base classop back to ToC or Object Property ToC
IRI: https://w3id.org/moont/baseClass
- has super-properties
- modelica object property op
- has domain
- MDerives c or MExtends c
- has range
- MAbstractClass c
component modificationop back to ToC or Object Property ToC
IRI: https://w3id.org/moont/componentModification
- has super-properties
- modelica object property op
- has sub-properties
- component redeclaration op, component value change op
- has domain
- MComponent c
component redeclarationop back to ToC or Object Property ToC
IRI: https://w3id.org/moont/componentRedeclaration
- has super-properties
- component modification op
component value changeop back to ToC or Object Property ToC
IRI: https://w3id.org/moont/componentValueChange
- has super-properties
- component modification op
connected toop back to ToC or Object Property ToC
IRI: https://w3id.org/moont/connectedTo
- has super-properties
- modelica object property op
- has domain
- m connector component c
- has range
- m connector component c
connectionop back to ToC or Object Property ToC
IRI: https://w3id.org/moont/connection
- has super-properties
- modelica object property op
- has domain
- MBlock c or MClass c or MModel c
- has range
- MConnection c
contained inop back to ToC or Object Property ToC
IRI: https://w3id.org/moont/containedIn
- has super-properties
- modelica object property op
- has domain
- MAbstractClass c
- has range
- MAbstractClass c
derivesop back to ToC or Object Property ToC
IRI: https://w3id.org/moont/derives
- has super-properties
- modelica object property op
- has domain
- MAbstractClass c
- has range
- MDerives c
equationop back to ToC or Object Property ToC
IRI: https://w3id.org/moont/equation
- has super-properties
- modelica object property op
- has domain
- MAbstractClass c
extendsop back to ToC or Object Property ToC
IRI: https://w3id.org/moont/extends
- has super-properties
- modelica object property op
- has domain
- MAbstractClass c
- has range
- MExtends c
externalop back to ToC or Object Property ToC
IRI: https://w3id.org/moont/external
- has super-properties
- modelica object property op
- has domain
- MFunction c
- has range
- MExternal c
fromPortop back to ToC or Object Property ToC
IRI: https://w3id.org/moont/fromPort
- has super-properties
- modelica object property op
- has domain
- MConnection c
- has range
- m connector component c
hasPartop back to ToC or Object Property ToC
IRI: https://w3id.org/moont/hasPart
- has super-properties
- modelica object property op
- has domain
- MAbstractClass c
- has range
- MComponent c
initialAlgorithmop back to ToC or Object Property ToC
IRI: https://w3id.org/moont/initialAlgorithm
- has super-properties
- modelica object property op
- has domain
- MAbstractClass c
- has range
- MAlgorithm c
itemsop back to ToC or Object Property ToC
IRI: https://w3id.org/moont/items
- has super-properties
- modelica object property op
- has domain
- MEnumerationType c
- has range
- MEnumerationLiteral c
statementop back to ToC or Object Property ToC
IRI: https://w3id.org/moont/statement
- has super-properties
- modelica object property op
- has domain
- MAlgorithm c
- has range
- MAlgorithm c
toPortop back to ToC or Object Property ToC
IRI: https://w3id.org/moont/toPort
- has super-properties
- modelica object property op
- has domain
- MConnection c
- has range
- m connector component c
typeop back to ToC or Object Property ToC
IRI: https://w3id.org/moont/type
- has super-properties
- modelica object property op
- has domain
- MComponent c
- has range
- MAbstractClass c
Data Properties
- annotation
- arraySubscripts
- causality
- condition
- description
- dynamicReference
- fromPortArraySubscripts
- functionCall
- identifier
- initial
- isEncapsulated
- isExpandable
- isFinal
- isFlow
- isPartial
- isProtected
- language
- modification
- string comment
- toPortArraySubscripts
- variability
annotationdp back to ToC or Data Property ToC
IRI: https://w3id.org/moont/annotation
- has super-properties
- modelica data property dp
- has domain
- MAbstractClass c or MComponent c
- has range
- string
arraySubscriptsdp back to ToC or Data Property ToC
IRI: https://w3id.org/moont/arraySubscripts
- has super-properties
- modelica data property dp
- has domain
- MComponent c or MDerives c
- has range
- string
causalitydp back to ToC or Data Property ToC
IRI: https://w3id.org/moont/causality
- has super-properties
- modelica data property dp
- has domain
- MComponent c or MDerives c
conditiondp back to ToC or Data Property ToC
IRI: https://w3id.org/moont/condition
- has super-properties
- modelica data property dp
- has domain
- MComponent c
- has range
- string
descriptiondp back to ToC or Data Property ToC
IRI: https://w3id.org/moont/description
- has super-properties
- modelica data property dp
- has domain
- MComponent c or MConnection c or MEnumerationLiteral c or MEquation c
- has range
- string
dynamicReferencedp back to ToC or Data Property ToC
IRI: https://w3id.org/moont/dynamicReference
- has super-properties
- modelica data property dp
- has domain
- MComponent c
fromPortArraySubscriptsdp back to ToC or Data Property ToC
IRI: https://w3id.org/moont/fromPortArraySubscripts
- has super-properties
- modelica data property dp
- has domain
- MConnection c
- has range
- string
functionCalldp back to ToC or Data Property ToC
IRI: https://w3id.org/moont/functionCall
- has super-properties
- modelica data property dp
- has domain
- MExternal c
- has range
- string
identifierdp back to ToC or Data Property ToC
IRI: https://w3id.org/moont/identifier
- has super-properties
- modelica data property dp
- has domain
- MComponent c or MEnumerationLiteral c or MExternal c
- has range
- string
initialdp back to ToC or Data Property ToC
IRI: https://w3id.org/moont/initial
- has super-properties
- modelica data property dp
- has domain
- MEquation c
- has range
- boolean
isEncapsulateddp back to ToC or Data Property ToC
IRI: https://w3id.org/moont/isEncapsulated
- has super-properties
- modelica data property dp
- has domain
- MAbstractClass c
- has range
- boolean
isExpandabledp back to ToC or Data Property ToC
IRI: https://w3id.org/moont/isExpandable
- has super-properties
- modelica data property dp
- has domain
- MConnector c
- has range
- boolean
isFinaldp back to ToC or Data Property ToC
IRI: https://w3id.org/moont/isFinal
- has super-properties
- modelica data property dp
- has domain
- MComponent c
- has range
- boolean
isFlowdp back to ToC or Data Property ToC
IRI: https://w3id.org/moont/isFlow
- has super-properties
- modelica data property dp
- has domain
- MTypeComponent c
- has range
- boolean
isPartialdp back to ToC or Data Property ToC
IRI: https://w3id.org/moont/isPartial
- has super-properties
- modelica data property dp
- has domain
- MAbstractClass c
- has range
- boolean
isProtecteddp back to ToC or Data Property ToC
IRI: https://w3id.org/moont/isProtected
- has super-properties
- modelica data property dp
- has domain
- MComponent c
- has range
- boolean
languagedp back to ToC or Data Property ToC
IRI: https://w3id.org/moont/language
- has super-properties
- modelica data property dp
- has domain
- MExternal c
- has range
- string
modificationdp back to ToC or Data Property ToC
IRI: https://w3id.org/moont/modification
- has super-properties
- modelica data property dp
- has domain
- MComponent c or MDerives c or MExtends c
- has range
- string
string commentdp back to ToC or Data Property ToC
IRI: https://w3id.org/moont/stringComment
- has super-properties
- modelica data property dp
- has domain
- MAbstractClass c or MComponent c
- has range
- string
toPortArraySubscriptsdp back to ToC or Data Property ToC
IRI: https://w3id.org/moont/toPortArraySubscripts
- has super-properties
- modelica data property dp
- has domain
- MConnection c
- has range
- string
variabilitydp back to ToC or Data Property ToC
IRI: https://w3id.org/moont/variability
- has super-properties
- modelica data property dp
- has domain
- MComponent c
Named Individuals
boolean typeni back to ToC or Named Individual ToC
IRI: https://w3id.org/moont/BooleanType
- belongs to
- MBooleanType c
integer typeni back to ToC or Named Individual ToC
IRI: https://w3id.org/moont/IntegerType
- belongs to
- MIntegerType c
real typeni back to ToC or Named Individual ToC
IRI: https://w3id.org/moont/RealType
- belongs to
- MRealType c
Legend back to ToC
op: Object Properties
dp: Data Properties
ni: Named Individuals
References back to ToC
- Eckstädt, E., Menzel, K., Pruvost, H., Mayer, D.: Representing Modelica models as knowledge graphs using the MoOnt ontology. 2023. EC3/CIBW78.
- Eckstädt, E. : Bidirectional coupling of Building Information Modeling and Building Simulation unsing ontologies. 2021. EGICE.
- Sprint Consortium: Wolfram System Modeller Ontology. http://www.sprint-iot.eu/Wolfram-Modelica-ontology.zip. 2014
Acknowledgments back to ToC
This work has been accomplished within the FMI4BIM project funded by the German Federal Ministry for Economic Affairs and Energy (BMWI) under reference number 03ET1603A and iECO project funded by the German Federal Ministry for Economic Affairs and Climate Action under grant agreement 68GX21011D.
The authors would like to thank Silvio Peroni for developing LODE, a Live OWL Documentation Environment, which is used for representing the Cross Referencing Section of this document and Daniel Garijo for developing Widoco, the program used to create the template used in this documentation.
